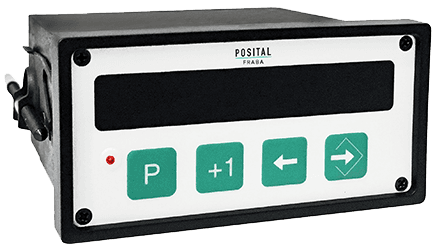

10035193 - AP20-0A Counter (analog o/p)
POSITAL Accessories 10035193 - AP20-0A Counter (analog o/p), Accessories:10035167 - AP2X Module Accessory - IP54 Transparent Protective Hood w/ Lock (+35€); 10035169 - AP2X Module Accessory - IP65 Transparent Front Cover (+12€);10035171 - AP2X Module Accessory - RS232 Programming Cable 2m (+35€); Available 0
| General Data | |
| Intro | 8 Digit display in DIN-enclosure 96 X 48 mm, Input for incremental encoders, All inputs and outputs optically isolated, Serial port for PC based programming |
| Notes | Accessories:10035167 - AP2X Module Accessory - IP54 Transparent Protective Hood w/ Lock (+35€); 10035169 - AP2X Module Accessory - IP65 Transparent Front Cover (+12€);10035171 - AP2X Module Accessory - RS232 Programming Cable 2m (+35€); |
| Electrical Data | |
| Supply Voltage | 10 - 35V DC |
| Current Consumption | < 150 mA |
| External Sensor Supply | +5V or +Vs / max 400 mA |
| General Data | |
| Max. Counting Range | -9999999…+99999999 |
| Cycle Time | 250 μs (fixed) |
| Input Type | Incremental Input (5V TTL / 24 HTL) [Optically Isolated], Max. Frequency - 150 kHz, Min. Impulse Width - 2 μs |
| Digital Input 1…2 | Optically isolated; low: 0…+5 V; high: +10 V…+35 V |
| Voltage Output | Galvanically isolated; max -10V … +10V; 16 bit; Imax ±12 mA |
| Current Output | Galvanically isolated; max -20 mA … +20 mA; 16 bit,Rmax 550Ω |
| Serial Ports | RS232 C |
| Display | 8 Digit, 7 Segment LED, 10mm Digit Height |
| Mechanical Data | |
| Operating Temperature | 0°C to 50°C / 32°F to 122°F |
| Weight | 250 g |
| Sealing | Front: IP50 / Rear: IP20 |
| Panel Cut-Out | 90 X 43 mm |
All dimension in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
