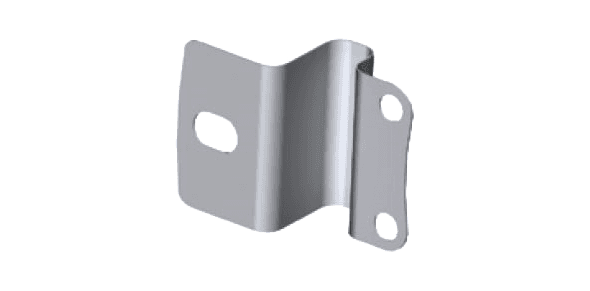

POSITAL provides torque support sets comprising of tethers, mounting screws, spacers or washers. These are generally used to anchor the hollow shaft encoder to the customers’ system and prevent it from rotating along with the driving shaft
Flange Type
OCD-IN Through Hollow, ø77mm & ø100mm
Material
Stainless Steel
Compatible Flange Options
-Txxx-
Bolt Circle Diameter
ø 109 mm (ø 4.29")
Tightening Torque
0.6 - 0.8Nm
All dimension in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
