Accessories

Bracket Spring Synchro Flange

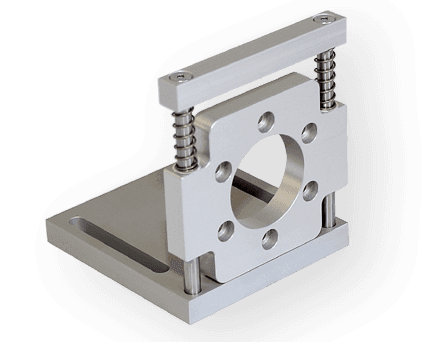

10072052 - Mounting Bracket Spring Loaded f. Synchro Flange

POSITAL Accessories 10072052 - Mounting Bracket Spring Loaded f. Synchro Flange, Available 0
General Data
IntroIt is customized to fit all encoders with a Ø36mm flange along with measurement wheels. The spring feature ensures optimal positioning of the encoder/ measurement wheel and guarantees a constant pressure on the measurement surface
Flange TypeSynchro - Solid Shaft
Flange Diameter36 mm
MaterialAluminium
Shaft Diameter10 mm
Weight300 g

All dimension in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
