Pivot Arm 58mm

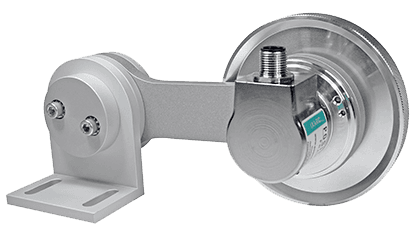

10072050 - Spring Loaded Pivot Arm 58mm

POSITAL Accessories 10072050 - Spring Loaded Pivot Arm 58mm, Available 0
General Data
IntroThe new spring arm is suitable for use with measuring wheels from 300mm to 500mm in circumference on our standard encoders. Thanks to its highly flexible modular design, it can be installed in almost any position.
Flange TypeClamping - Solid Shaft
Flange Diameter58 mm
MaterialAluminium
Mechanical Data
Operating Temperature-30°C to 60°C / -22°F to 140°F
Weight380 g

All dimension in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
