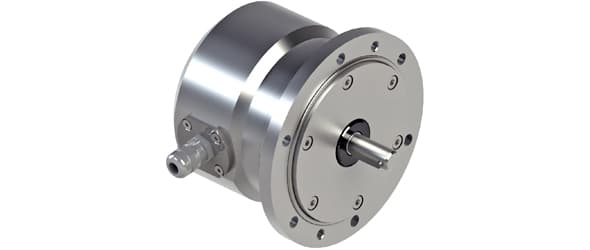

IXARC Incremental Encoder
OCD-INH00-XXXXX-115W-5RW
POSITAL
Measuring Tools & Sensors
Push-Pull (HTL), Cable - Radial 5 m, A, B, Z, /A, /B, /Z, IP67, Stainless Steel - V4A (1.4404, 316 L), Solid Shaft - Clamping, ø 115 mm (4.52"), ø 11 mm (0.43")
Available
0
| Interface | |
| Interface | Incremental |
| Outputs | |
| Output Driver | Push-Pull (HTL) |
| Output Incremental | A, /A, B, /B, Z, /Z |
| Quadrature Phasing | 90° ± 4.5° electrical |
| Electrical Data | |
| Supply Voltage | 4.5 – 30 VDC |
| Current Consumption | Typical 40mA @ 24V (no load) |
| Power Consumption | ≤ 1.2 W |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Sensor | |
| Technology | Optical |
| Pulses per Revolution | 360, 512, 1000, 1024, 2000, 2048, 2500 |
| Accuracy (INL) | ±0.002° |
| Environmental Specifications | |
| Protection Class (Shaft) | IP66/IP67 |
| Protection Class (Housing) | IP66/IP67 |
| Operating Temperature | -40 °C fixed (-40 °F), -30 °C flexible (-22 °F) - +80 °C (+176 °F) |
| Humidity | 98% RH, no condensation |
| Mechanical Data | |
| Housing Material | Stainless Steel V4A (1.4404, 316 L) |
| Housing Coating | No Coating |
| Flange Type | Clamp, ø 115 mm |
| Flange Material | Stainless steel V4A (1.4404, 316 L) |
| Shaft Type | Solid, Length = 27 mm, with Key Way |
| Shaft Diameter | ø 11 mm (0.43") |
| Shaft Material | Stainless Steel V4A (1.4404, 316L) |
| Max. Shaft Load | Axial 250 N, Radial 350 N |
| Rotor Inertia | ≤ 200 gcm² [≤ 1 oz-in²] |
| Friction Torque | ≤ 5 Ncm @ 20 °C, (7.1 oz-in @ 68 °F) |
| Max. Permissible Mechanical Speed | ≤ 8000 1/min |
| Shock Resistance | ≤ 200 g (half sine 11 ms, EN 60068-2-27) |
| Vibration Resistance | ≤ 20 g (20 Hz – 2000 Hz, EN 60068-2-6) |
| Length | 81,5 mm (3.21") |
| Weight | 3600 g (7.94 lb) |
Minimum Mechanical Lifetime
(10^8 revolutions with Fa/Fr) | 30 (250N/350N) |
| Electrical Connection | |
| Connection Orientation | Radial |
| Cable Length | 5 m [197"] |
| Wire Cross Section | 0.25 mm² / AWG 24 |
| Material / Type | PUR / PU |
| Cable Diameter | 5.2 mm (0.2 in) |
| Minimum Bend Radius | 30 mm (1.18 in) fixed, 60 mm (2.36 in) flexing |
| Product Life Cycle | |
| Product Life Cycle | Established |
| Connection Plan | |
| SIGNAL | CABLE COLOR |
| A | Green |
| /A | Yellow |
| B | Gray |
| /B | Pink |
| Z | Blue |
| /Z | Red |
| Power Supply | Brown |
| GND | White |
| Shielding | Shield |
Connector-View on Encoder
Pulse Diagram
Rotation Clockwise (seen on shaft)
If the drawings are not available please refer to the "Download" section.
The picture and drawing are for general presentation purposes only. All dimension in [inch] mm.
