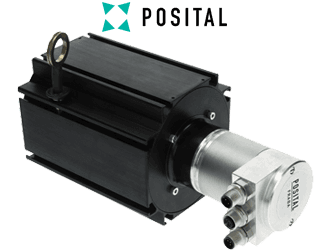

LINARIX Linear Sensor
LD0-EM00B-1213-AH00-PRM
POSITAL
Measuring Tools & Sensors
IP64 / IP65, Draw Wire - 7 m – 15 m (22.96' – 49.21'), Modbus/TCP + TCP/IP, 13 bit (8192 Steps), Draw Wire Enclosure - Extruded Metal, Connector - Radial 2 x M12, Radial 0 / Axial, Optical (≤ 0.02°)
Available
0
General Data Supply Voltage 10 – 30 VDC Power Consumption ≤ 2.5 W Turn On Time < 1 s Operating Temperature 0 °C (32 °F) - +60 °C (+140 °F) Weight 3255 g (7.18 lb) Protection Class (Encoder) IP64 / IP65 EMC: Emitted Interference DIN EN 61000-6-4 EMC: Noise Immunity DIN EN 61000-6-2
Mechanical Data Max. Measurement Length 10.00 m (32.81') Length per Revolution 315 mm Wire Material Coated Polyamide Stainless Steel Wire Diameter 1.00 mm Encoder Housing Material Steel Draw Wire Housing Material Aluminum Max. Speed of Wire Displacement 2.0 m / s Max. Wire Acceleration 6.0 g Max. Extension Force 21.0 N Min. Retraction Force 8.0 N Actuation Lifetime 0.5 mio Cycles (Estimated based on ideal conditions) Wire Mounting Eyelet Max. Wire Exit Angle ±3°
Sensor Data Technology Optical (≤ 0.02°) Accuracy ±0.01 % FSO Repeatability ±0.001 % FSO Resolution [Encoder - Singleturn] 13 bit Resolution [Encoder - Multiturn] 12 bit Approx. Linear Resolution 38.5 µm Output Code Binary
Interface Communication Interface Ethernet ModbusTCP Profile TCP/IP, UDP, Modbus TCP (IEC 61158) Programming Functions Resolution, preset, complement, transmission mode: polled mode, cyclic mode, change of state Transmission Rate 10 / 100 Mbit Cycle Time Interface ≥ 10 ms
Outputs Output Driver Ethernet Current Consumption ≤ 230 mA @ 10 V DC, ≤ 100 mA @ 24 V DC Reverse Polarity Protection Yes Short Circuit Protection Yes MTTF 134 years @ 60 °C
Electrical Connection Connection Orientation Radial Connection Orientation (w.r.t Draw Wire) Radial 0 / Axial Connector 1 M12, Male, 5 pin, a coded Connector 2 M12, Female, 4 pin, d coded
Product Life Cycle Product Life Cycle Established
Connection Plan SIGNAL CONNECTOR PIN NUMBER Power Supply Connector 1 1 Power Supply Connector 1 2 GND Connector 1 3 GND Connector 1 4 PE Connector 1 5 Tx+ Connector 2 1 Rx+ Connector 2 2 Tx- Connector 2 3 Rx- Connector 2 4
Connector-View on Encoder
All dimension in [inch] mm. Encoder dimensions may vary depending on electrical interface and connector. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
