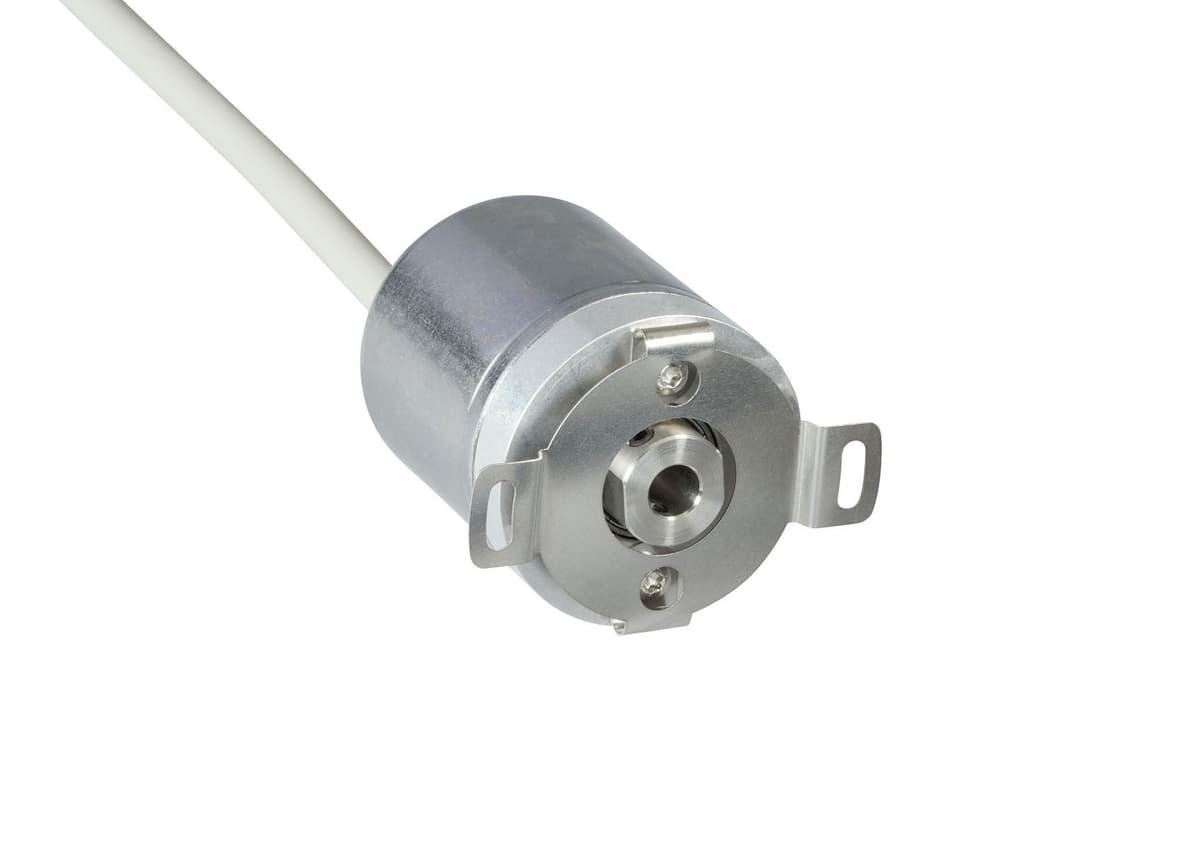

| Interface | Analog Current |
| Manual Functions | Start and End point via Cable or Connector |
| Supply Voltage | 8 – 32 VDC |
| Current Consumption | Typical 20 mA @24 V (no load) |
| Start-Up Time | <500 ms |
| Max Load Resistance | 500 Ω |
| Analog Accuracy | @ 20 mA = ±20 µA (with an ideal power supply) |
| Linearity | 0.15% |
| Settling Time | 32 ms (from min value to max value jump) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| MTTF | 240.8 years @ 40 °C |
| Technology | Magnetic |
| Resolution Singleturn | 13 bit |
| Resolution Multiturn | 4 bit |
| Multiturn Technology | Self powered magnetic pulse counter (no battery, no gear) |
| Accuracy (INL) | ±0.0878° (≤ 12 bit) |
| Sense Signal (Default) | Counterclockwise shaft movement (front view on shaft) |
| Code | Analog Current 4 – 20 mA |
| Cycle Time Base Sensor | < 100 µs |
| Minimum Measurement Range | 0 – 11.25° |
| Resolution of Output | Max. 13 bits over entire measuring range (Fractional Turns - Resolution decreases less than 13 bits when measuring range is less than 90 degrees) |
| Multiturn Range | 16 turn (default setting). User can use the scaling functionality to measure up to 65536 turns. |
| Protection Class (Shaft) | IP65 |
| Protection Class (Housing) | IP54 |
| Min Temperature | -30 °C fixed (-22 °F), -5 °C flexible (+23 °F) |
| Max Temperature | +80 °C (+176 °F) |
| Humidity | 98% RH, no condensation |
| Housing Material | Steel |
| Housing Coating | Cathodic corrosion protection (>720 hrs salt spray resistance) |
| Flange Type | Blind Hollow, ø 36 mm (A) |
| Flange Material | Aluminum |
| Shaft Type | Blind Hollow, Depth = 18 mm |
| Shaft Diameter | ø 6.35 mm (1/4") |
| Shaft Material | Stainless Steel V2A (1.4305, 303) |
| Friction Torque | ≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F) |
| Max. Permissible Mechanical Speed | ≤ 6000 1/min |
| Shock Resistance | ≤ 100 g (half sine 6 ms, EN 60068-2-27) |
| Permanent Shock Resistance | ≤ 10 g (half sine 16 ms, EN 60068-2-29) |
| Vibration Resistance | ≤ 10 g (10 Hz – 1000 Hz, EN 60068-2-6) |
| Length | 54,2 mm (2.13") |
| Weight | 405 g (0.89 lb) |
| Maximum Axial / Radial Misalignment | Static ± 0.3 mm /± 0.5 mm; Dynamic ± 0.1 mm /± 0.2 mm |
| Connection Orientation | Axial |
| Cable Length | 5 m [197"] |
| Wire Cross Section | 0.14 mm² / AWG 26 |
| Material / Type | PVC |
| Cable Diameter | 6 mm (0.24 in) |
| Minimum Bend Radius | 46 mm (1.81") fixed, 61 mm (2.4") flexing |
| Product Life Cycle | Exiting |
| Signal | Color |
|---|---|
| Power Supply | Red |
| GND | Yellow |
| Analog Output | Green |
| Set1/Direction | Brown |
| Set2/Zero Set | White |
| Shielding | Shield |
