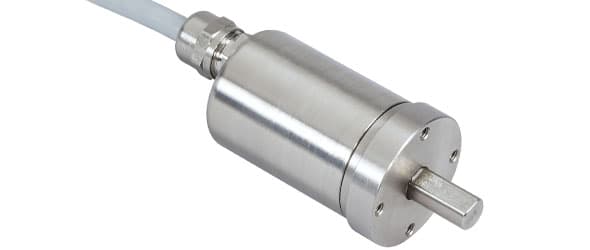

| Interface | SSI with Preset |
| Manual Functions | Preset + complement via cable or connector |
| Interface Cycle Time | ≥ 25 µs |
| Multiple Transmissions | Once |
| Number of Preset Cycles | 5,100,000 |
| SSI Format | SSSSSSSSSSSSS0 |
| Output Driver | RS422 |
| Supply Voltage | 4.5 – 30 VDC |
| Current Consumption | Typical 50 mA |
| Power Consumption | ≤ 1.0 W |
| Start-Up Time | < 1 s |
| Clock Input | RS 422, via Optocoupler |
| Clock Frequency | 100 kHz – 2 MHz |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| MTTF | 500 years @ 40 °C |
| Technology | Magnetic |
| Resolution Singleturn | 13 bit |
| Resolution Multiturn | 0 bit |
| Accuracy (INL) | ±0.0878° (≤ 12 bit) |
| Sense Signal (Default) | Clockwise shaft movement (front view on shaft) |
| Code | Gray |
| Protection Class (Shaft) | IP68/IP69K |
| Protection Class (Housing) | IP68/IP69K |
| Min Temperature | -40 °C fixed (-40 °F), -30 °C flexible (-22 °F) |
| Max Temperature | +80 °C (+176 °F) |
| Humidity | 98% RH, no condensation |
| Housing Material | Stainless Steel V4A (1.4404, 316 L) |
| Housing Coating | No Coating |
| Flange Type | Blind Hollow, ø 36 mm / ø 42 mm |
| Flange Material | Stainless steel V4A (1.4404, 316 L) |
| Shaft Type | Blind Hollow, Depth = 22 mm |
| Shaft Diameter | ø 10 mm (0.39") |
| Shaft Material | Stainless Steel (1.4112, 440 B), hardened |
| Friction Torque | ≤ 6 Ncm @ 20 °C, (8.5 oz-in @ 68 °F) |
| Max. Permissible Mechanical Speed | ≤ 12000 1/min |
| Shock Resistance | ≤ 200 g (half sine 11 ms, EN 60068-2-27) |
| Permanent Shock Resistance | ≤ 20 g (half sine 11ms, ≤5 g (half sinus 30 ms) |
| Vibration Resistance | ≤ 20 g (20 Hz – 2000 Hz, EN 60068-2-6) |
| Length | 70 mm (2.76") |
| Weight | 640 g (1.41 lb) |
| Maximum Axial / Radial Misalignment | Static ± 0.3 mm /± 0.5 mm; Dynamic ± 0.1 mm /± 0.2 mm |
| Connection Orientation | Axial |
| Cable Length | 5 m [197"] |
| Wire Cross Section | 0.34 mm² / AWG 22 |
| Material / Type | PUR / PU |
| Cable Diameter | 7.5 mm (0.30 in) |
| Minimum Bend Radius | 56 mm (2.2") fixed, 75 mm (3") flexing |
| Approval | CE |
| Product Life Cycle | Lab Sample |
| Signal | Color |
|---|---|
| Power Supply | Brown |
| GND | White |
| Data+ | Gray |
| Data- | Pink |
| Clock+ | Green |
| Clock- | Yellow |
| Preset | Blue |
| DIR | Red |
| Shielding | Shield |
