| Interface | SSI with Button and LEDs |

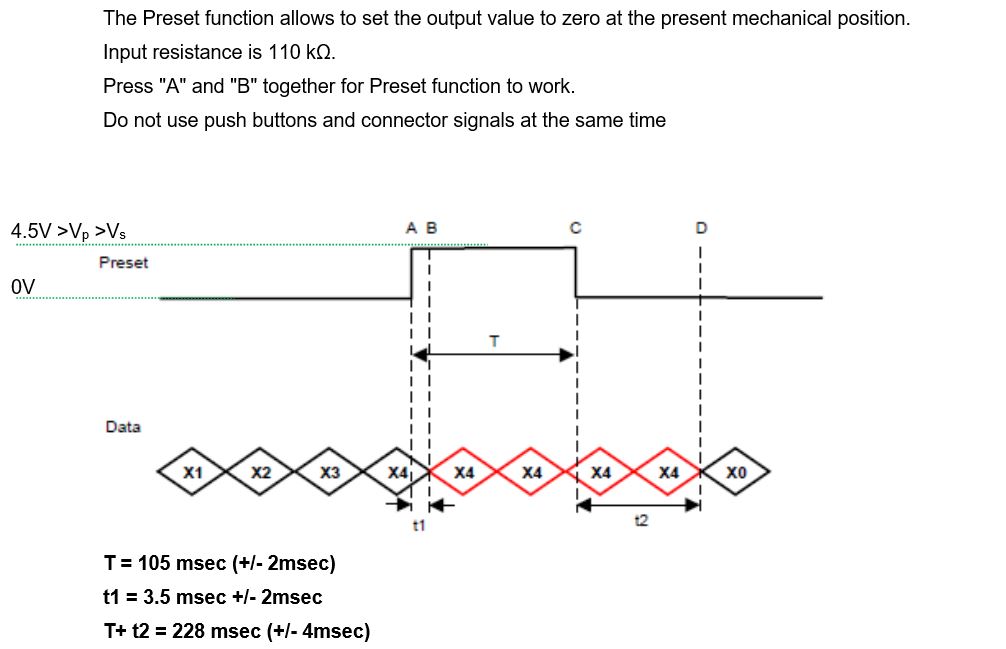

| Manual Functions | Preset via push button and cable or connector |
| Interface Cycle Time | ≥ 25 µs |
| Number of Preset Cycles | 5,100,000 |
| SSI Format | MMMMMMMMMMMMMMMMSSSSSSSSSSSSSSSS |
| Output Driver | RS422 |
| Supply Voltage | 4.5 – 30 VDC |
| Current Consumption | Typical 50 mA |
| Power Consumption | ≤ 1.0 W |
| Start-Up Time | < 1 s |
| Clock Input | RS 422, via Optocoupler |
| Clock Frequency | 100 kHz – 2 MHz |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| MTTF | 350 years @ 40 °C |
| Technology | Magnetic |
| Resolution Singleturn | 16 bit |
| Resolution Multiturn | 16 bit |
| Multiturn Technology | Self powered magnetic pulse counter (no battery, no gear) |
| Accuracy (INL) | ±0.0878° (≤ 12 bit) |
| Sense Signal (Default) | Clockwise shaft movement (front view on shaft) |
| Code | Binary |
| Protection Class (Shaft) | IP65 |
| Protection Class (Housing) | IP65 |
| Humidity | 98% RH, no condensation |
| Max Temperature | +80 °C (+176 °F) |
| Min Temperature | -30 °C fixed (-22 °F), -5 °C flexible (+23 °F) |
| Housing Material | Steel |
| Housing Coating | Cathodic corrosion protection (>720 hrs salt spray resistance) |
| Flange Type | Blind Hollow, ø 36 mm / ø 42 mm |
| Flange Material | Aluminum |
| Shaft Type | Blind Hollow, Depth = 18 mm |
| Shaft Diameter | ø 6.35 mm (1/4") |
| Shaft Material | Stainless Steel V2A (1.4305, 303) |
| Friction Torque | ≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F) |
| Max. Permissible Mechanical Speed | ≤ 12000 1/min |
| Shock Resistance | ≤ 100 g (half sine 6 ms, EN 60068-2-27) |
| Permanent Shock Resistance | ≤ 10 g (half sine 16 ms, EN 60068-2-29) |
| Vibration Resistance | ≤ 10 g (10 Hz – 1000 Hz, EN 60068-2-6) |
| Length | 54,2 mm (2.13") |
| Weight | 240 g (0.53 lb) |
| Maximum Axial / Radial Misalignment | Static ± 0.3 mm /± 0.5 mm; Dynamic ± 0.1 mm /± 0.2 mm |
| Connection Orientation | Radial |
| Cable Length | 10 m [394"] |
| Wire Cross Section | 0.14 mm² / AWG 26 |
| Material / Type | PVC |
| Cable Diameter | 6 mm (0.24 in) |
| Minimum Bend Radius | 46 mm (1.81") fixed, 61 mm (2.4") flexing |
| Approval | CE + cULus |
| Product Life Cycle | Established |
| Signal | Color |
|---|---|
| Power Supply | Brown |
| GND | White |
| Preset | Blue |
| Data+ | Gray |
| Data- | Pink |
| Clock+ | Green |
| Clock- | Yellow |
| DIR | Red |
| Shielding | Shield |
| ? | ? |
| ? | ? |
