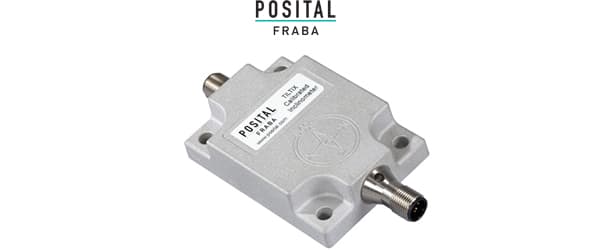

TILTIX Inclinometer
AKS-090-2-CA01-HK2-PW
POSITAL Measuring Tools & Sensors CANopen, 2 Axes - ± 90°, Dynamic / Accelerometer + Gyroscope, CE, IP68 / IP69K, Aluminum, 0.30°, 0.01°, Connector - 2 x M12 (m+f) Available 0
| General Specifications | ||
| Application | Dynamic Inclinometer 2-Axes | |
| Measurement Range | ± 90° | |
| Absolute Accuracy | ±0.30° | |
| Resolution | 0.01° | |
| Repeatability | ≤0.05° | |
| Dynamic Accuracy | ±0.50° | |
| Cycle Time Base Sensor | 5 ms | |
| Hysteresis | ≤0.05° | |
| Device Orientation | Horizontal |
| Electrical Specifications | ||
| Supply Voltage | 9 – 30 VDC | |
| Current Consumption | ≤ 65 mA @ 10 V DC, ≤ 60 mA @ 24 V DC | |
| EMC: Emitted Interference | DIN EN 61000-6-4 | |
| EMC: Noise Immunity | DIN EN 61000-6-2 | |
| Reverse Polarity Protection | Yes | |
| Short Circuit Protection | Yes | |
| MTTF | 260 years @ 40 °C |
| Environmental Specifications | ||
| Operating Temperature | -40 °C (-40 °F) - +75 °C (+167 °F) | |
| Storage Temperature | -40 °C (-40 °F) – +85 °C (+185 °F) | |
| Temperature Gradient | 0.008°/ K | |
| Protection Class | IP68/IP69K | |
| Shock Resistance | ≤ 100 g (half sine 6 ms, EN 60068-2-27) | |
| Vibration Resistance | 1.5 mm (10 Hz – 58 Hz) & ≤ 20 g (58 Hz to 2000 Hz) |
| Mechanical Specifications | ||
| Housing Material | Die-Cast Aluminum Alloy | |
| Potting Material | PUR (Polyurethane) | |
| Weight | 220 g (0.49 lb) |
| Interface | ||
| Interface | CANopen | |
| Settling Time | 50 ms | |
| Output Driver | Transceiver (ISO 11898), Galvanically Isolated by Opto-Coupl | |
| Profile | DS-410 | |
| Transmission Rate | min. 20 kBaud, max. 1 MBaud | |
| Default Transmission Rate | 125 kBaud | |
| Default Node ID | 1h |
| Electrical Connection | ||
| Connection Type | Connector 2 x M12 (m+f) | |
| Connector 1 | M12, Male, 5 pin, a coded | |
| Connector 2 | M12, Female, 5 pin, a coded |
| Product Life Cycle | ||
| Product Life Cycle | Established |
| Certification | |
| Approval | CE + E1 |
| Connection Plan | ||
| SIGNAL | CONNECTOR | PIN NUMBER |
| Power Supply | Connector 1 | 2 |
| GND | Connector 1 | 3 |
| CAN High | Connector 1 | 4 |
| CAN Low | Connector 1 | 5 |
| CAN GND | Connector 1 | 1 |
| Power Supply | Connector 2 | 2 |
| GND | Connector 2 | 3 |
| CAN High | Connector 2 | 4 |
| CAN Low | Connector 2 | 5 |
| CAN GND | Connector 2 | 1 |
All dimension in [inch] mm. This drawing and the information contained is for general presentation purposes only. Please refer to the "Download" section for detailed technical drawings.
