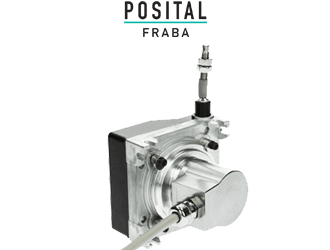

| Supply Voltage | 8 – 32 VDC |
| Start-Up Time | <500 ms |
| Min Temperature | -30 °C fixed (-22 °F), -5 °C flexible (+23 °F) |
| Max Temperature | +80 °C (+176 °F) |
| Weight | 715 g (1.58 lb) |
| Protection Class | IP64 / IP65 |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Measuring Length | 3.00 m (9.84') |
| Mean Length per Revolution | 200 mm |
| Wire Material | Plastic Coated Stainless Steel |
| Wire Diameter | 0.61 mm |
| Housing Material | Steel |
| Draw Wire Housing Material | Zinc Die-cast |
| Max. Speed of Wire Displacement | 0.8 m / s |
| Max. Angular Acceleration | 1.0 g |
| Max Extension Force | 3.0 N |
| Min Retraction Force | 2.5 N |
| Actuation Lifetime | Not Available |
| Wire Mounting | M6 Thread |
| Max. Wire Exit Angle | ±0° |
| Technology | Magnetic (≤ 0.09°) |
| Accuracy | ±0.012 % Full Scale Output |
| Repeatability | ±0.005 % Full Scale Output |
| Resolution Singleturn | Programmable max. 13 bit, pre-programmed 13 bit |
| Resolution Multiturn | Programmable max. 16 bit, pre-programmed 4 bit |
| Approx. Linear Resolution | 0.1 mm/pulse (Default) |
| Code | Programmable Analog Voltage 0-10 V or 0.5-9.5 V, preprogrammed 0-10V |
| Resolution of Output | Max. 13 bits over entire measuring range (Fractional Turns - Resolution decreases less than 13 bits when measuring range is less than 90 degrees) |
| Multiturn Range | 16 turn (default setting). User can use the UBIFAST Tool to measure up to 65536 turns. |
| Interface | Programmable Analog Voltage (Preset + Dir) |
| Programming Functions | Measurement Range, Preset Value, Output Direction, Code |
| Manual Functions | Preset + complement via cable or connector |
| Configuration Tool | UBIFAST Configuration Tool (Version ≥ 1.6.10) + Ubifast Adapter Cable - UCD-Ax -PxM (Connector Version) or UBIFAST 2.0 Adapter - Terminal Block for SSI, INC, Analog |
| Current Consumption | Typical 15 mA @24V (no load) |
| Min. Load Resistance | 5 kΩ |
| Analog Accuracy | @ 10 V = ±10 mV (with an ideal power supply) |
| Settling Time | 32 ms (from min value to max value jump) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 240.8 years @ 40 °C |
| Connection Orientation | Radial |
| Connection Orientation (w.r.t Draw Wire) | Radial 3 |
| Connector | Cable 2 m |
| Cable Length | 2 m [79"] |
| Wire Cross Section | 0.14 mm² / AWG 26 |
| Material / Type | PVC |
| Cable Diameter | 6 mm (0.24 in) |
| Minimum Bend Radius | 46 mm (1.81") fixed, 61 mm (2.4") flexing |
| Product Life Cycle | New |
| Signal | Color |
|---|---|
| Power Supply | Red |
| GND | Yellow |
| Analog Output | Green |
| Set1/Direction | Brown |
| Set2/Zero Set | White |
| Shielding | Shield |
