| Supply Voltage | 8 – 32 VDC |
| Start-Up Time | <500 ms |
| Weight | 3115 g (6.87 lb) |
| Protection Class | IP64 / IP65 |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Max Temperature | +80 °C (+176 °F) |
| Min Temperature | -20 °C (-4 °F) |
| Measuring Length | 10.00 m (32.81') |
| Length per Revolution | 315 mm |
| Wire Material | Coated Polyamide Stainless Steel |
| Wire Diameter | 1.00 mm |
| Housing Material | Steel |
| Draw Wire Housing Material | Aluminum |
| Max. Speed of Wire Displacement | 2.0 m / s |
| Max. Angular Acceleration | 6.0 g |
| Max Extension Force | 21.0 N |
| Min Retraction Force | 8.0 N |
| Actuation Lifetime | 0.5 mio Cycles (Estimated based on ideal conditions) |
| Wire Mounting | Eyelet |
| Max. Wire Exit Angle | ±3° |
| Technology | Magnetic (≤ 0.09°) |
| Accuracy | ±0.01 % Full Scale Output |
| Repeatability | ±0.001 % Full Scale Output |
| Resolution Singleturn | 13 bit |
| Resolution Multiturn | 4 bit |
| Approx. Linear Resolution | 38.5 µm |
| Code | Analog Voltage 0 – 10 V |
| Resolution of Output | Max. 13 bits over entire measuring range (Fractional Turns - Resolution decreases less than 13 bits when measuring range is less than 90 degrees) |
| Multiturn Range | 16 turn (default setting). User can use the scaling functionality to measure up to 65536 turns. |
| Interface | Analog Voltage |
| Manual Functions | Programmable Start and End point via Cable or Connector or Push Button |
| Current Consumption | Typical 15 mA @24V (no load) |
| Min. Load Resistance | 5 kΩ |
| Analog Accuracy | @ 10 V = ±10 mV (with an ideal power supply) |
| Settling Time | 32 ms (from min value to max value jump) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 257.6 years @ 40 °C |

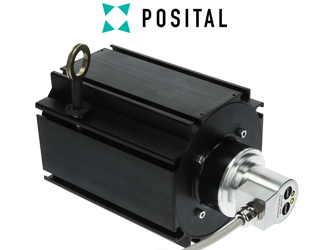

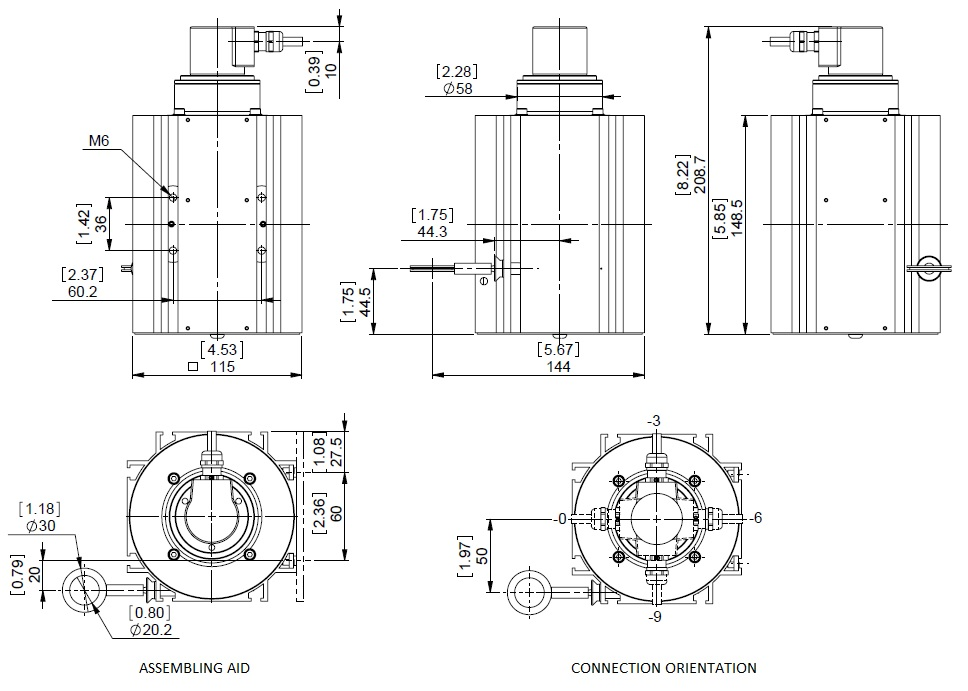

| Connection Orientation | Radial |
| Connection Orientation (w.r.t Draw Wire) | Radial 6 |
| Cable Length | 1 m [39"] |
| Wire Cross Section | 0.14 mm² / AWG 26 |
| Material / Type | PVC |
| Cable Diameter | 6 mm (0.24 in) |
| Minimum Bend Radius | 46 mm (1.81") fixed, 61 mm (2.4") flexing |
| Product Life Cycle | Established |
| Signal | Color |
|---|---|
| Power Supply | Red |
| GND | Yellow |
| Analog Output | Green |
| Set1/Zero Set | Brown |
| Set2/DIR | White |
