| Supply Voltage | 9 – 30 VDC |
| Power Consumption | ≤ 1.2 W |
| Weight | 1545 g (3.41 lb) |
| Protection Class | IP64 / IP65 |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| Max Temperature | +70 °C (+158 °F) |
| Min Temperature | -30 °C (-22 °F) |
| Measuring Length | 2.00 m (6.56') |
| Length per Revolution | 200 mm |
| Wire Material | Stainless Steel |
| Wire Diameter | 1.35 mm |
| Housing Material | Steel |
| Draw Wire Housing Material | Anodized Aluminium |
| Max. Speed of Wire Displacement | 8.0 m / s |
| Max Extension Force | 15.0 N |
| Min Retraction Force | 5.0 N |
| Actuation Lifetime | 1.0 mio Cycles (Estimated based on ideal conditions) |
| Wire Mounting | Eyelet |
| Max. Wire Exit Angle | ±3° |
| Technology | Magnetic (≤ 0.09°) |
| Accuracy | ± 0.10 % Full Scale Output |
| Repeatability | ±0.05 % Full Scale Output |
| Resolution Singleturn | 13 bit |
| Resolution Multiturn | 12 bit |
| Approx. Linear Resolution | 24.4 µm |
| Code | Binary |
| Interface | CANopen |
| Profile | DS-406 |
| Programming Functions | Resolution, preset, 2 limit switches, 8 CAMS, baud rate, CAN-Identifier, bootloader, transmission modes: polled, cyclic, sync |
| Transmission Rate | min. 20 kBaud, max. 1 MBaud |
| Interface Cycle Time | ≥ 1 ms |
| Output Driver | Transceiver (ISO 11898), Galvanically Isolated by Opto-Couplers |
| Current Consumption | ≤ 65 mA @ 10 V DC, ≤ 60 mA @ 24 V DC |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| MTTF | 240 years @ 40 °C |

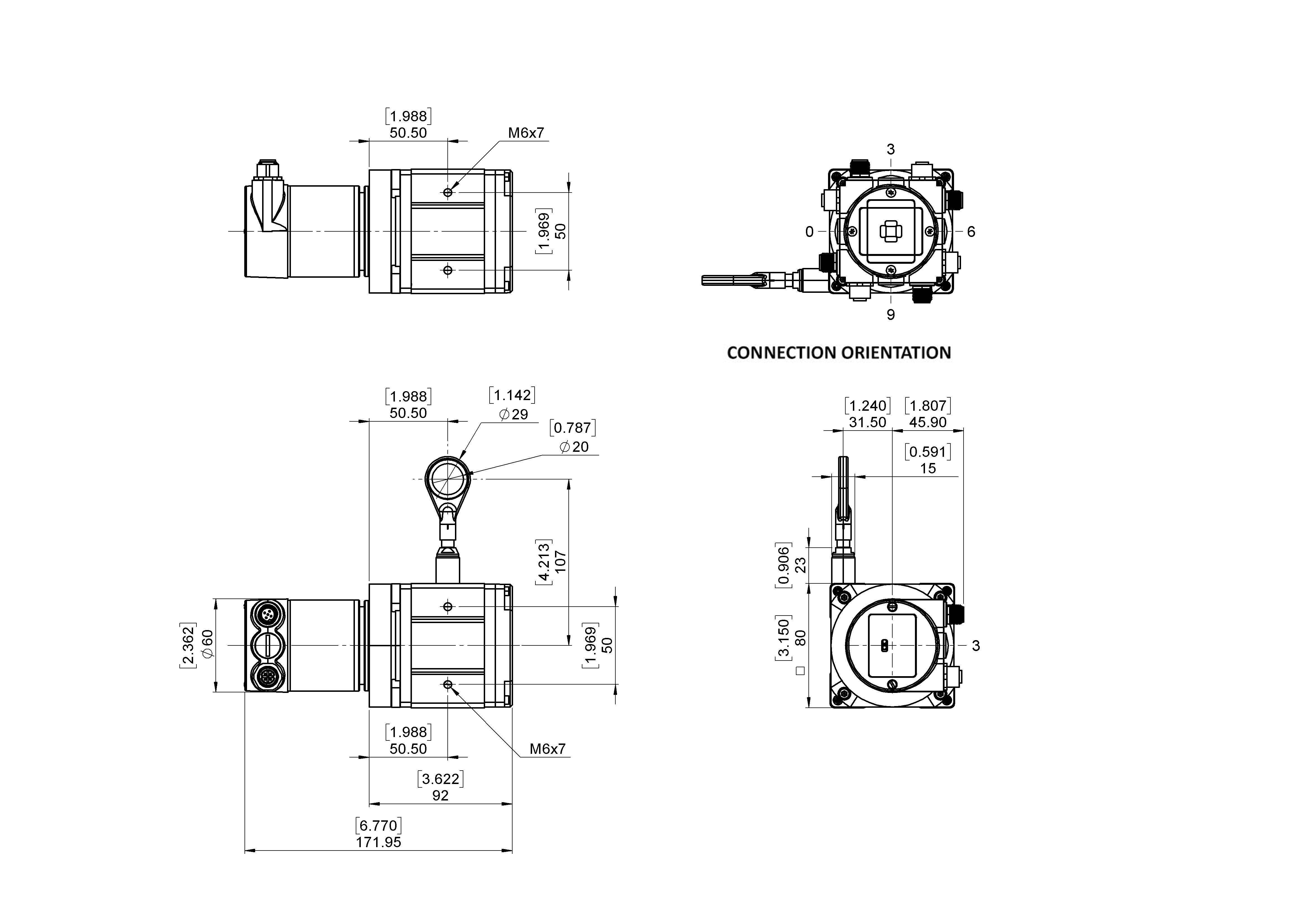

| Connection Orientation | Radial |
| Connection Orientation (w.r.t Draw Wire) | Radial 3 |
| Connector 1 | M12, Male, 5 pin, a coded |
| Connector 2 | M12, Female, 5 pin, a coded |
| Connection Type | 2 x M12 Connector |
| Product Life Cycle | Prototype |
| Signal | Connector | Pin Number |
|---|---|---|
| Power Supply | 1 | 2 |
| GND | 1 | 3 |
| CAN High | 1 | 4 |
| CAN Low | 1 | 5 |
| CAN GND | 1 | 1 |
| Power Supply | 2 | 2 |
| GND | 2 | 3 |
| CAN High | 2 | 4 |
| CAN Low | 2 | 5 |
| CAN GND | 2 | 1 |
